- Place of Origin: Henan, China (Mainland)
- Brand Name: WANTAI
- Model Number: DTL
Description

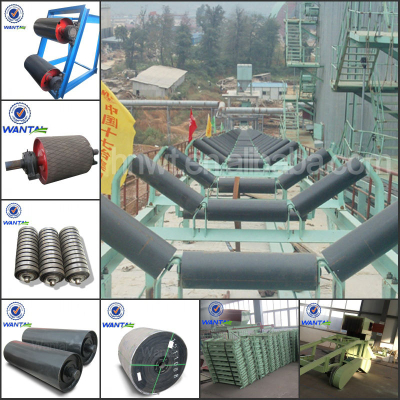

Belt Conveyor System is used to transporting loose materials such as powder, lumps, granulars of iron ore, coal, sand, rock, cement, etc.(bulk density 0.5~2.5t/m³) or end product in production line.It is widely used in mining, steel, power, port industries.
Main Material
Conveyor Stringer: Q235 or Q245 angle iron Roller Supports: Q235 angle iron Roller Pipe: Q235 steel pipe
Rubber belt: PVC, PU, Nylon, Teflon.
belt strength: cotton canvas belt 56 N/mm nylon canvas belt 100~300 N/mm steel wire core belt st630~st2000 N/mm
Parameters of Suitable Belt Width
Belt width (mm) | 500 | 650 | 800 | 1000 | 1200 | 1400
| 1600 | 1800 | 2000 |
Max. Size of the materials (mm) |
100 |
150 |
200 |
300 |
350 |
350 |
350 |
350 |
350 |
Width (mm) | Belt speed (m/s) | |||||||||||
0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | 3.15 | 4 | 4.5 | 5.0 | 5.6 | 6.5 | |
Capacity (m³/h) | ||||||||||||
500 | 69 | 87 | 108 | 139 | 174 | 217 | ||||||
650 | 127 | 159 | 198 | 254 | 318 | 397 | ||||||
800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 | |||||
1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | ||||
1200 | 593 | 742 | 951 | 1188 | 1486 | 1872 | 2377 | 2674 | 2971 | |||
1400 | 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3304 | 3718 | 4130 | |||
1600 | 2186 | 2783 | 3444 | 4373 | 4920 | 5466 | 6122 | |||||
1800 | 2795 | 3494 | 4403 | 5591 | 6291 | 6989 | 7829 | 9083 | ||||
2000 | 3470 | 4338 | 5466 | 6941 | 7808 | 8676 | 9717 | 11277 | ||||
2200 | 6843 | 8690 | 9776 | 10863 | 12166 | 14120 | ||||||
2400 | 8289 | 10526 | 11842 | 13158 | 14737 | 17104 | ||||||
Suitable working condition
- The suitable working temperature is -25~ 40°C.
- Other protective measures towards the conveyor system should be taken, when it work in a very hot, cold, corrosive, flammable, explosive or damp environment.
