Description

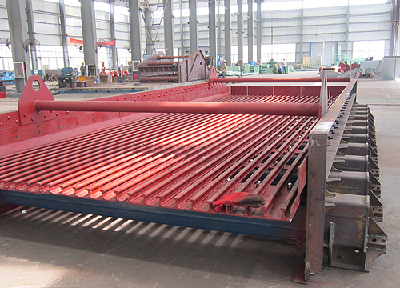

JKS 2445 vibration screen is used for classification of coal or rock. Durable sieve plate help devide the material into different types in size. It is widely used in coal or ore industries or coal, ore production line.
Feature
Material: Q235, Q245R steel plate
Service Life: 8 years
Certificates: ISO9001, BV
| Model | Sieve Area (m2) | Max. Size of Materials (mm) | Mesh Size (mm) | Layer | Double Amplitude (mm) | Vibration Frequency (r/min) |
| JKS2445 | 10.8 | 3 | 0.2-0.3 | 1 | 2-5 | 1440 |
Power (kw) | Voltage (v) | Frequency (Hz) | Current (A) | Capacity (t/h) | Overall Dimension (mm) | Weight (kg) |
| 2×15 | 380 | 50 | 30 | 50-160 | 4840×3626×2315 | 7502 |
Working Principle
Two eccentric blocks are driven to rotating to an opposite direction. So vibrating box and sreen plate will vibrate in a line, and materials on the screen plate move forward.
