Description

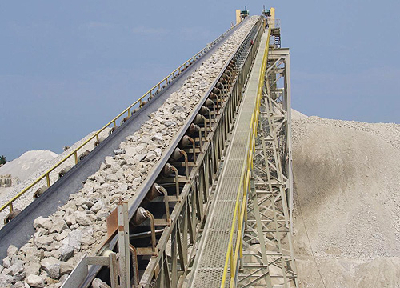

Vertical sidewall belt conveyor for blast furnace slag
Summary
Vertical belt conveyor for blast furnace slag are mainly applied to continuously conveying bulk material, which adopt the conveying belts equipped with corrugated sidewalls and transverse diaphragms with the of products conveying tilting angle of 0~90°.
Application field
1) Widly used in coal, metallurgy, electricity power, chemical industry, light industry, port, shipping industries etc.
2) Working environment temperature within 15°C--40°C,specific gravity of bulk material is between 0.5-2.5t/m3.
3) Special conveying belt is needed for materials with high temperature, acid, alkali, oil or organic solvent etc.
Belt Width(mm) | 500 | 650 | 800 | 1000 | 1200 | 1400(1600) | |||||||||||||
Side wall Height(mm) | 80 | 120 | 160 | 80 | 120 | 160 | 120 | 160 | 200 | 160 | 200 | 240 | 200 | 240 | 300 | 200 | 240 | 300 | 400 |
Diaphragm height(mm) | 75 | 110 | 150 | 75 | 110 | 150 | 110 | 150 | 180 | 150 | 180 | 220 | 180 | 220 | 280 | 180 | 220 | 280 | 360 |
Belt speed (m/s) |
0.8/1.0/1.25/1.6/2.0/2.5/3.15/4.0 | ||||||||||||||||||
Driving roller diameter (mm) | 400/500 | 400/500/630 | 500/630/800 | 630/800/1000 | 630/800/1000/1250/ | 800/1000/1250/1400 | |||||||||||||
Driven roller diameter (mm) | 400 | 400/500 | 400/500/630 | 500/630/800 | 500/630/800/1000 | 630/800/1000/1200 | |||||||||||||
Idler diameter (mm) |
89 |
108 | |||||||||||||||||
Structure advantages
Compared with common conveyer,high obliquity, it saves more floor space and reaches a higher obliquity.
Compared with bucket elevator, scraper conveyer, which advantages are as follow:
Large conveying capacity up to 6000m3/h,vertical elevating height up to 200m.
Smooth transition from level to slope or vertical.
Simple structure, easy maintenance, small footprint, low consumption(reduce 50%) .
High-strength belt,long service life( reach 10 years) .
