Description
Introduction
Linear vibrating screen is generally used to sifting the material of non-sticky and dry powder , 0.074-5mm size, less than 70% moisture content, etc. Maximum feed particle size is not more than 10mm.
Struction

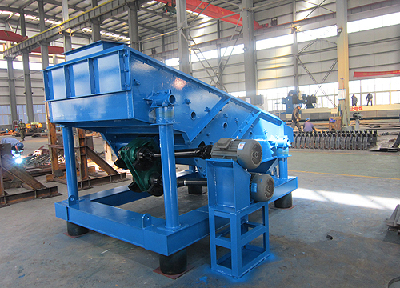

This equipment is mainly composed of screen box, screen frame,vibration motor, supporting device.
1) Screen box: mainly welded by Q235 plain carbon steel, also can be welded by various kinds of stainless steel according to customer's requirement.
2) Screen frame: screen frame can be made by carbon steel or stainless steel
3) Vibration motor: two sets of horizontal vibration motor installed in the equipment as vibration source, can produce exciting force to adapt to different requirements by adjusting the motor eccentric block at both ends
4) Supporting device: including supporting springs and supporting frame which welded by iron channel. Inclination of the screen can be modulated by changing the height of support legs.
Applications
1) For screening&grading of dry powder, fine particle and fine powder.
2) Widely used in abrasive, building material, ceramic, chemical, fertilizer, food, plastic, pharmaceutical, metallurgy industries, etc.
Model | Sieve area(mm) | Layer | Mesh size(mm) | Capacity (t/h) | Double amplitude (mm) |
ZS520 | 500×2000 | 1 | 2-200 | 0.05-5 | 6-7 |
2ZS520 | 0.05-5 | 6-7 | |||
3ZS520 | 500×2500 | 0.03-5 | 4-6 | ||
ZS525 | 0.06-8 | 5-7 | |||
2ZS525 | 0.06-8 | 4-6 | |||
3ZS525 | 0.06-8 | 6-8 | |||
4ZS525 | 0.1-15 | 5-7 | |||
5ZS525 | 0.08-15 | 5-7 | |||
6ZS525 | 0.07-15 | 6-8 | |||
ZS1020 | 1000×2000 | 1 | 0.12-20 | 6-8 | |
2ZS1020 | 2 | 0.11-20 | 5-7 | ||
3ZS1020 | 1000×2000 | 3 | 2-200 | 0.10-2 | 5-7 |
4ZS1020 | 4 | 0.07-15 | 4-8 | ||
5ZS1020 | 5 | 0.07-15 | 4-8 | ||
6ZS1020 | 6 | 0.07-15 | 4-8 | ||
ZS1025 | 1000×2500 | 1 | 0.1-15 | 5-7 | |
2ZS1025 | 2 | 0.08-15 | 5-7 | ||
3ZS1025 | 3 | 0.07-15 | 6-8 | ||
ZS830 | 800×3000 | 1 | 0.1-20 | 6-8 | |
0.1-20 | 6-8 | ||||
0.1-20 | 6-8 | ||||
ZS1030 | 1000×3000 | 1 | 0.1-20 | 6-8 | |
2ZS1030 | 2 | 0.1-20 | 6-8 | ||
3ZS1030 | 3 | 0.1-20 | 6-8 | ||
ZS1224 | 1200×2400 | 1 | 0.1-23 | 6-8 | |
2ZS1224 | 2 | 0.1-23 | 6-8 | ||
3ZS1224 | 3 | 0.1-23 | 6-8 |
Notice
Please provide us the following requirement, we will select suitable vibrating screen for you.
(a) The name of materials
(b) Aim of using: get rid of impurity, filtration, grading
(c) Treatment volume: kg /h, L/h.
(d) The specification of screen (mesh or mm).
(e) How long is the operation time every day?
(f) Vibratory screen can be provided with dust proof cover as required.
